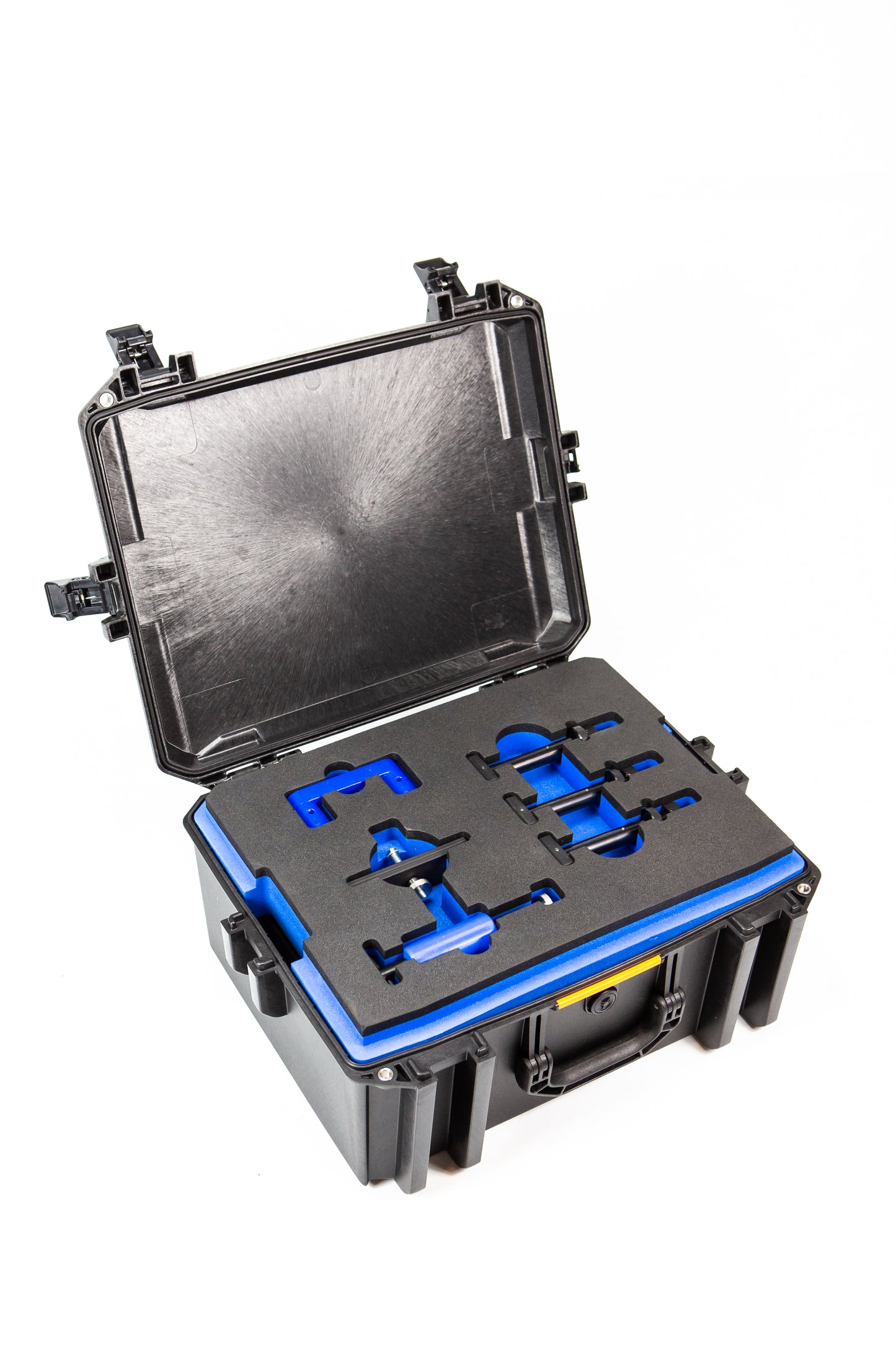

Flight Controls Adjustment Kit


Flight Controls Adjustment Kit for Airbus Helicopters AS350 single hydraulics Available as tool only or in a rugged pelican hard case with custom made high density foam inserts.

Kit includes the following:

Main Rotor Rigging Tool Kit (AS350 Single Hydraulic) - 350Y18-3003-10

  • Swashplate Jacks - 350Y94-3700-11
  • 7 Degree Taper - 350Y94-3701-00
  • Swashplate Rods - 350Y94-3700-10
  • Servo Rigging Pin - 350Y94-2706-10
  • Collective Rigging Pin - 350Y94-2706-11
  • Lever Rigging Pin - 350Y94-2706-12

Tail Rotor Rigging Tool Kit (AS350/355) - 350Y18-3003-20

  • Pedal Jamming Tool (3d printed) - 350Y94-2704-00B
  • Tail Rotor Hub Jamming tool - 350Y94-2708-01

 *Case and Foam Configuration may differ from images shown


AS350 Dual Hydraulics (optional)

  • replace Swashplate Rods with PN:  355Y94-3745-01
  • Adds Dual Hydraulic servo Rigging Pin set
